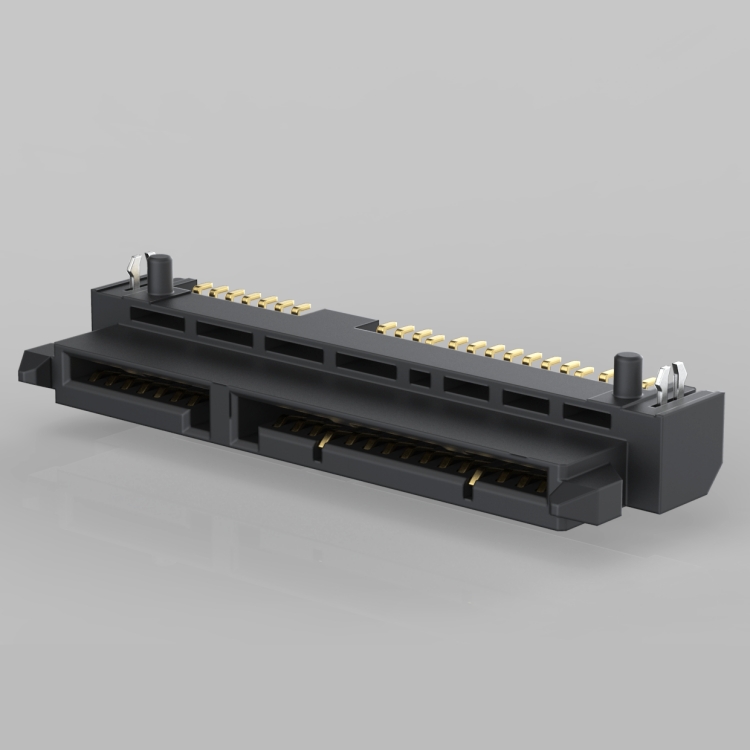

STA-M22C-BK-H4-F 1.27mm(0.05")PITCH 7+15Pin Series

SPECIFICATIONS
Electrical Characteristics:

• Reted Current : 1.0 AMP
• Insulation Rresistance : 1000MΩMin
• Contact resistance : 30mΩMax
• Dielectric witstanding voltage : AC 750V for 1 MINUTE
• Operating temperature : -40℃~+85℃


Material Description:

• Insulation material : Glass-filled Thermoplastic
• Color : BLACK(UL94V-0)
• Contact material : Brass
• Gold on Contact area,Tin/Lead on soldering area, all over nickel
