• CX-W250R-XXGO-SMTR 2.50mm(0.098")Pitch Wafer Series

    CX-W250R-XXGO-SMTR 2.50mm(0.098")Pitch Wafer Series

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 250V AC Maximum
    • Operating Temp: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Wafer: Nylon 6T, UL94V-0
    • Pin: Brass / Gold Flash
    • Solder Tab: Brass / Tin Plated

    PDF

CX-W250R-XXGO-SMTR 2.50mm(0.098")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

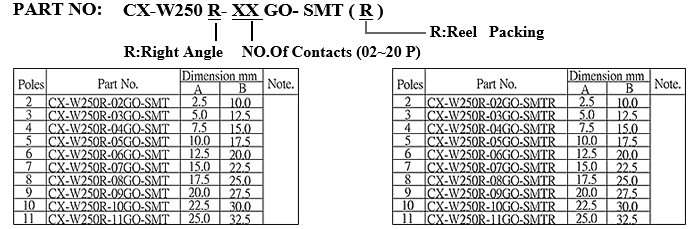

Part No. CX-W250R
