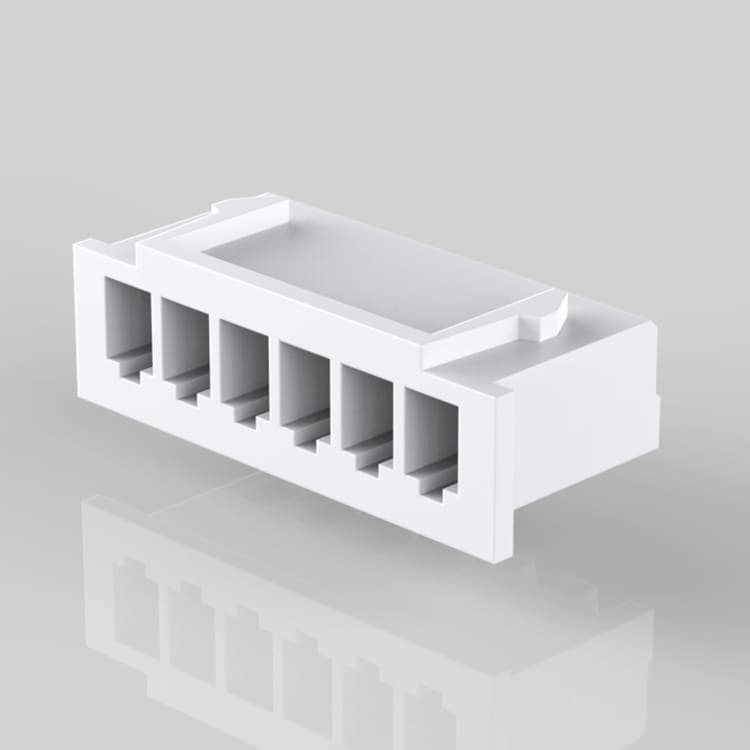

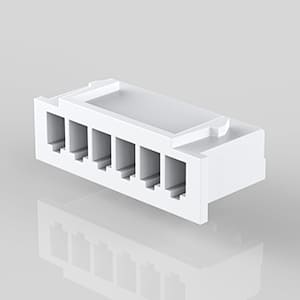

• CX-H250-XX 2.50mm(0.098")Pitch Wafer Series

    CX-H250-XX 2.50mm(0.098")Pitch Wafer Series

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 800V AC/minute
    • Material: Nylon 66, UL94V-0

    PDF

CX-H250-XX 2.50mm(0.098")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

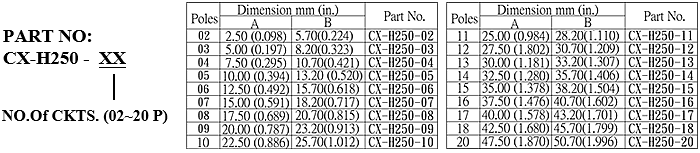

Part No. CX-H250
NO.Of CKTS
See Catalog
