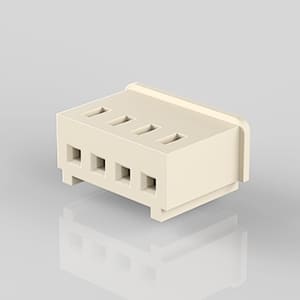

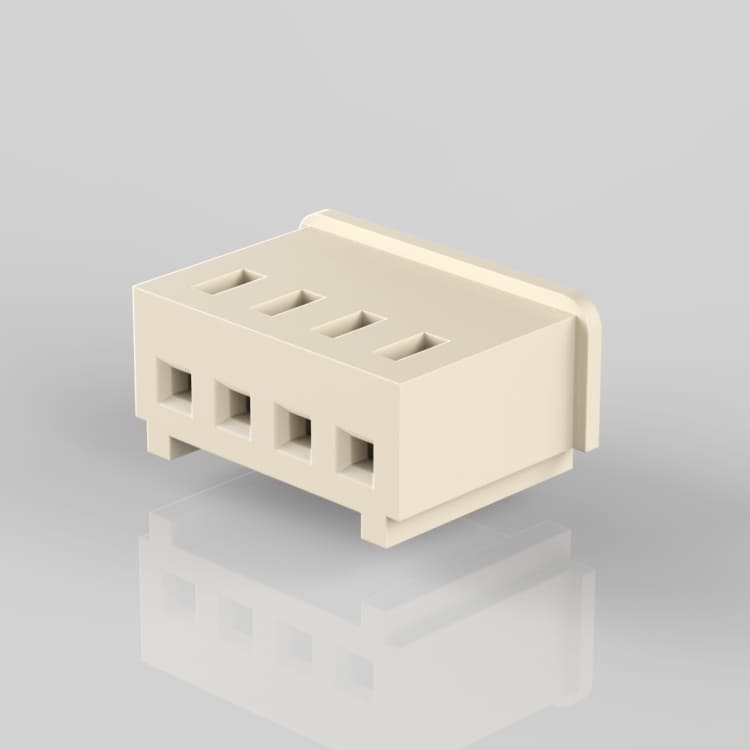

• CS-H250-XX 2.50mm(0.098")Pitch Wafer Series

    CS-H250-XX 2.50mm(0.098")Pitch Wafer Series

    SPECIFICATIONS

    • Current rang: 2A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 800V AC/minute
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-2

    PDF

CS-H250-XX 2.50mm(0.098")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

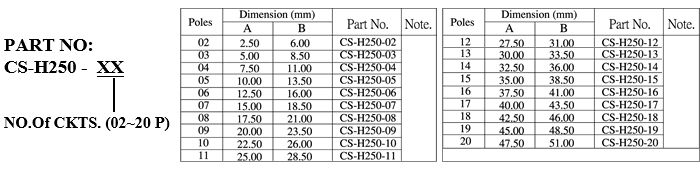

Part No. CS-H250
No. of Contact
See Catalog
