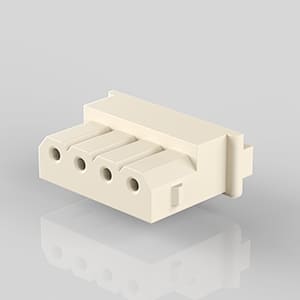

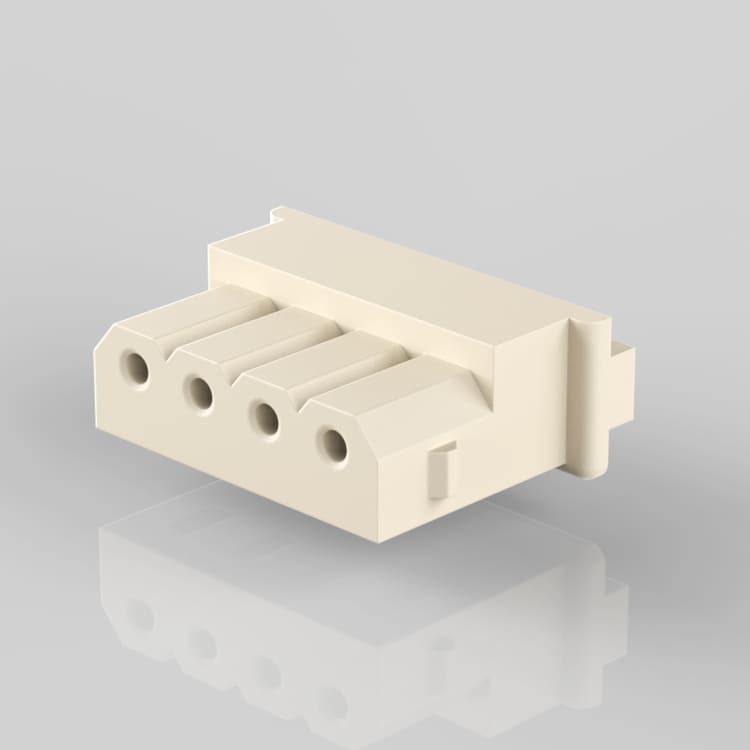

CB-H250-XX__ 2.50mm(0.098")Pitch Wafer Series
SPECIFICATIONS
- Pitch Between Poles: 2.5mm
- Current rating: 3A
- Voltage rating: 250V
- Contact resistance: Initial Value/10mΩ max, After Environmental testing/20mΩ max.
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 1000V AC/minute
- Applicable Wire : AWG#22 to #28
FEATURES

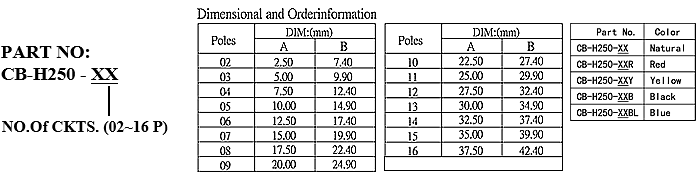

- Available number of circuits 2 to 15
- Material: Nylon-66,UL94V-0
