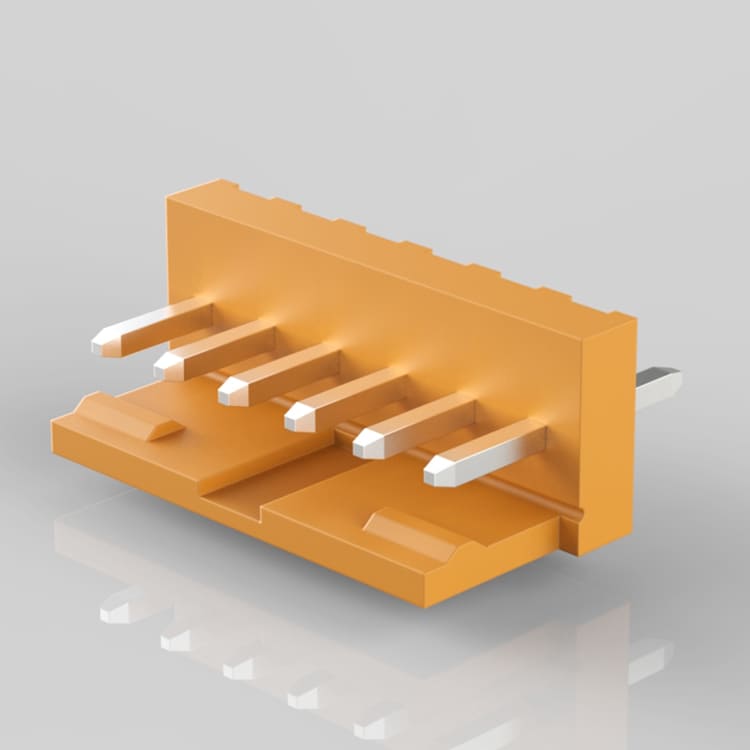

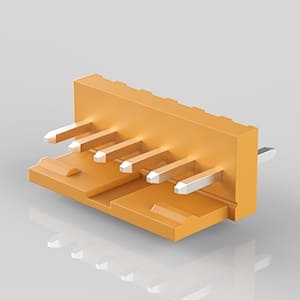

CAE-W250-XX-CF194
SPECIFICATIONS
- Current rating: 3A AC, DC
- Voltage rating: 500V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 20mΩ Max
- Insulation resistance: 100MΩ Min
- Withstanding voltage: 1500V AC/minute
- Pin Material: Brass/Tin-plated
- Material: Nylon 66, UL94V-0
