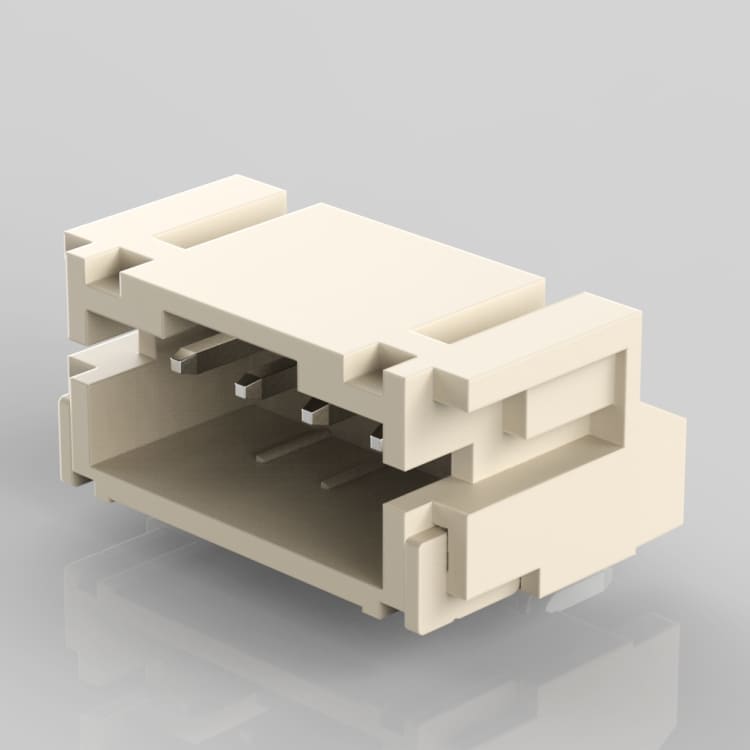

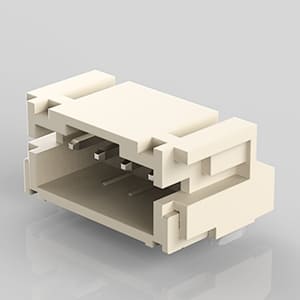

• CCP-W20R-XX-SMTR 2.00mm(0.079\")Pitch Wafer Series

    CCP-W20R-XX-SMTR 2.00mm(0.079\")Pitch Wafer Series

    SPECIFICATIONS

    • Current rating: 2A AC, DC
    • Voltage rating: 100V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 800V AC/minute
    • Finished: Tin-plated
    • Housing Material: Nylon-6T,UL94V-0
    • Color: Nature(Beige)

    PDF

CCP-W20R-XX-SMTR 2.00mm(0.079\")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

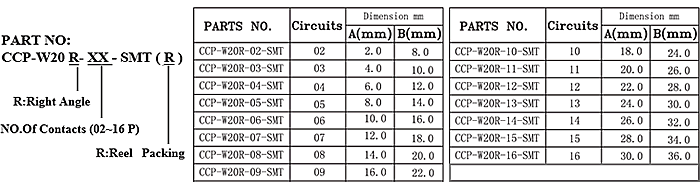

Part No. CCP-W20R
No. of Contact
See Catalog
