• CP-H20-XX 2.00mm(0.079\")Pitch Wafer Series

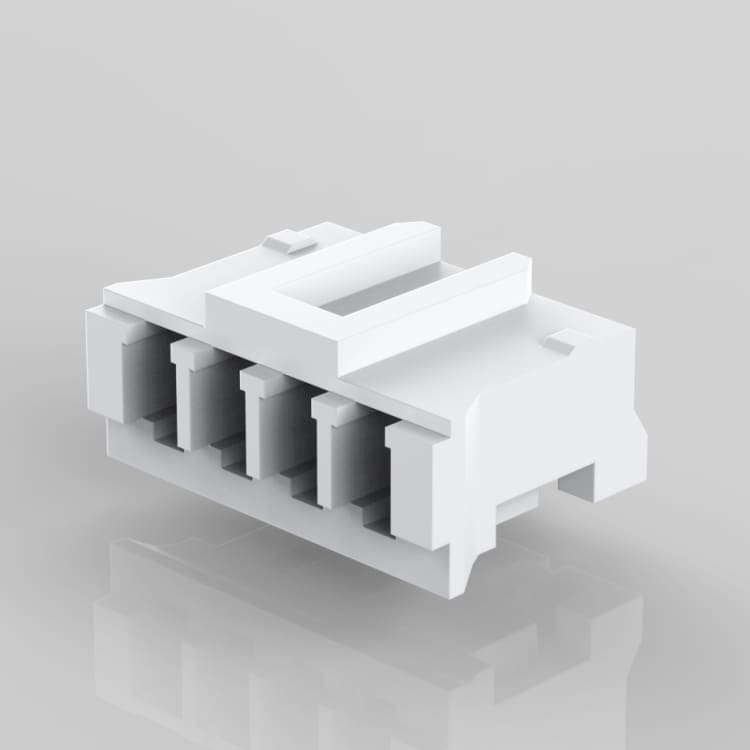

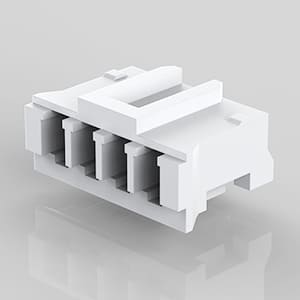

    CP-H20-XX 2.00mm(0.079\")Pitch Wafer Series

    SPECIFICATIONS

    • Current rating: 2A AC, DC
    • Voltage rating: 100V AC, DC
    • Operating Temp: -25°C~+85°C
    • Insulation resistance: 1000MΩMin
    • Dielectric Withstanding Voltage: 800V AC/minute
    • Contact Resistance:20mΩ/ max


    MATERIAL

    • Material: Nylon 66, UL94V-0

    PDF

CP-H20-XX 2.00mm(0.079\")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

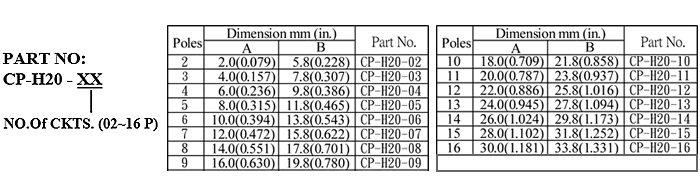

Part No. CP-H20
No. of Contact
