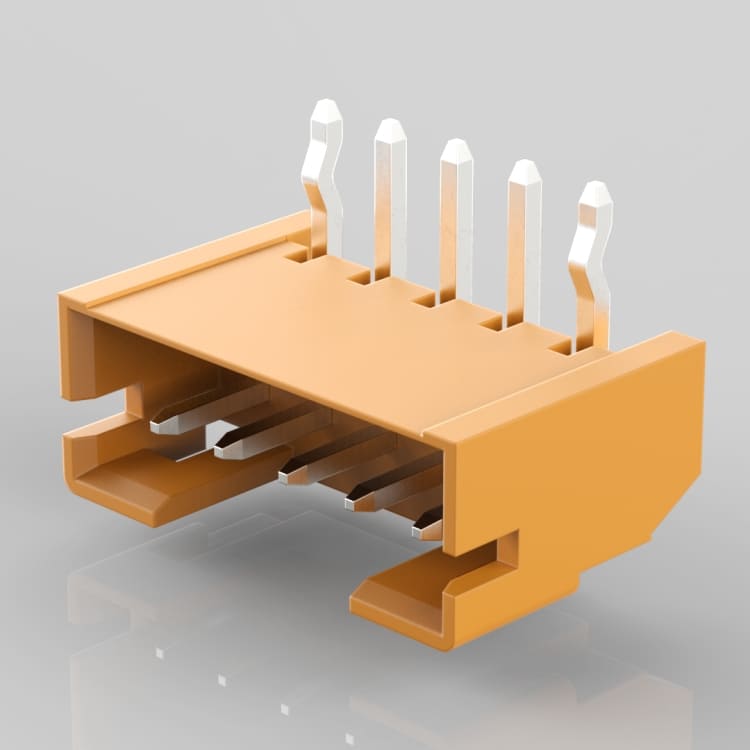

• CAE-W20R-XX 2.0mm Pitch Single Row Wafer ,DIP 90°

    CAE-W20R-XX 2.0mm Pitch Single Row Wafer ,DIP 90°

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 300V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-0
    • Color: reddish orange

    PDF

CAE-W20R-XX 2.0mm Pitch Single Row Wafer ,DIP 90°

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

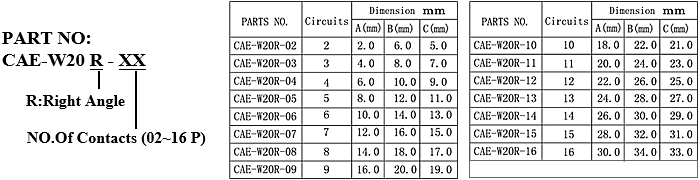

Part No. CAE-W20R
No. of Contact
