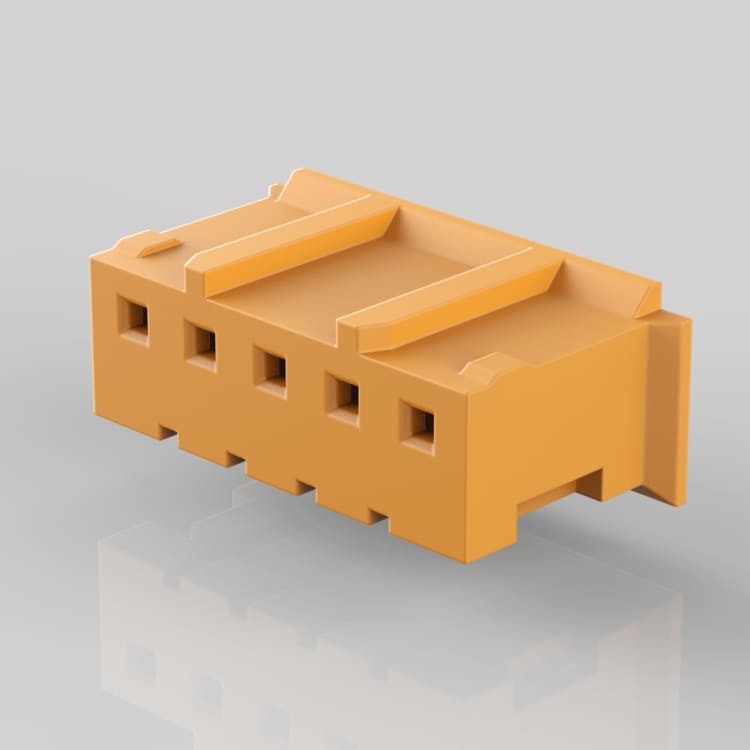

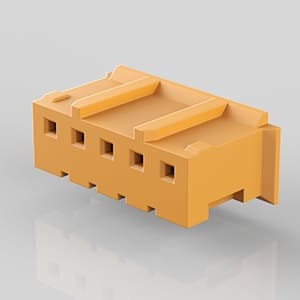

• CAE-H20-XX 2.0mm Pitch Single Row Housing

    CAE-H20-XX 2.0mm Pitch Single Row Housing

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 300V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Material: Nylon 66,UL94V-0,Color:153C~154C

    PDF

CAE-H20-XX 2.0mm Pitch Single Row Housing

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

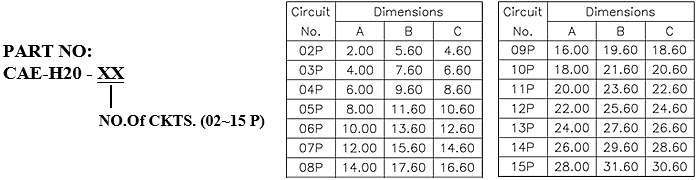

Part No. CAE-H20
NO.Of CKTS.
