• PHD-H20-2xXX 2.00mm(0.079\")Pitch Wafer Series

    PHD-H20-2xXX 2.00mm(0.079\")Pitch Wafer Series

    SPECIFICATIONS

    • Current rating: 2A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 800V AC/minute
    • Material: Nylon-66,UL94V-0

    PDF

PHD-H20-2xXX 2.00mm(0.079\")Pitch Wafer Series

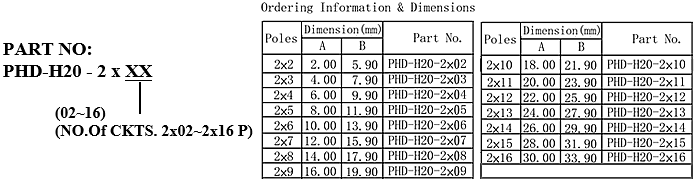

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Part No. PHD-H20
NO.Of CKTS
See Catalog
