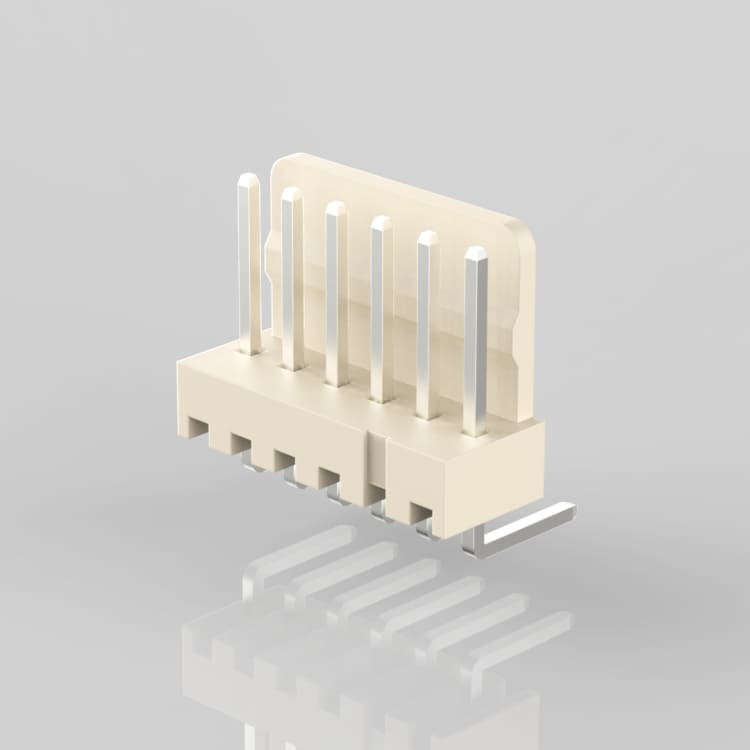

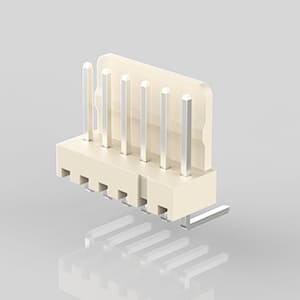

• CD-W254R-XX 2.54mm(0.100")Pitch Wafer Series

    CD-W254R-XX 2.54mm(0.100")Pitch Wafer Series

    SPECIFICATIONS

    • Current rating: 4A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-2
    • Color: Beige

    PDF

CD-W254R-XX 2.54mm(0.100")Pitch Wafer Series

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

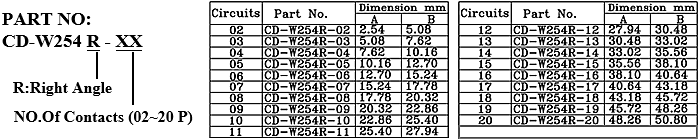

Part No. CD-W254R
