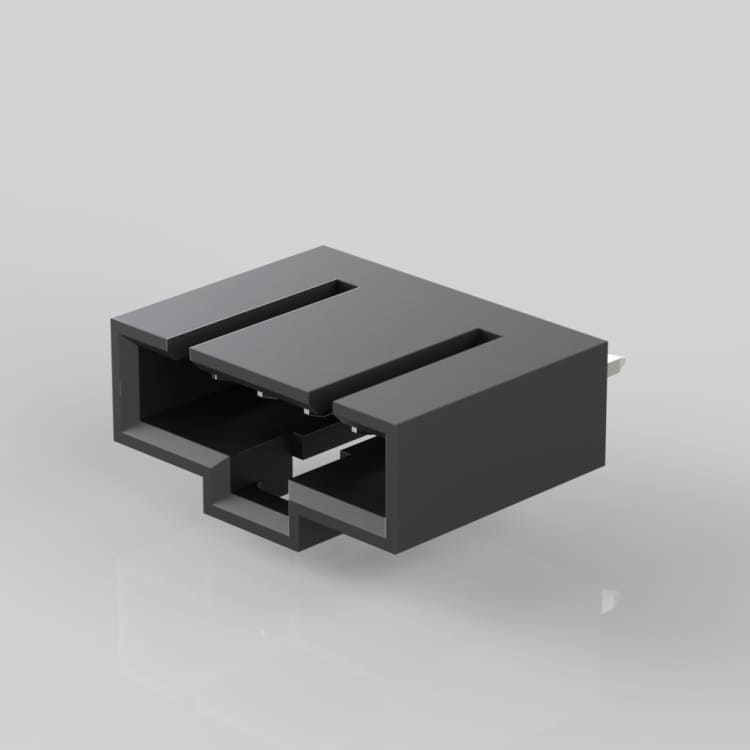

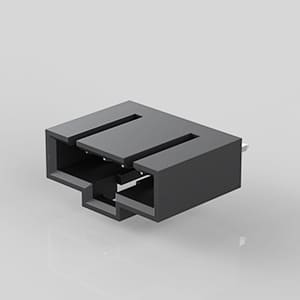

CPU-XXS
SPECIFICATIONS
- Base: Polyester 94V-0,PBT+30% glass-filled
- Contact: Brass, Gold-Plated
- Voltage rating: 250V AC, DC
- Current rating: 3A
- Withstanding voltage: 1000V AC/minute
- Insulation resistance: 1000MΩMin
- Temperature range: -25°C~+85°C
- Contact resistance: Initial value/10mΩ max
- After environmental testing/20mΩ max.
