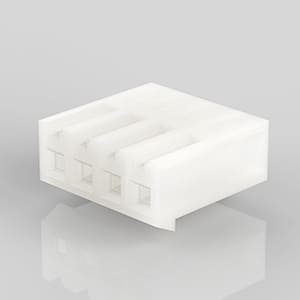

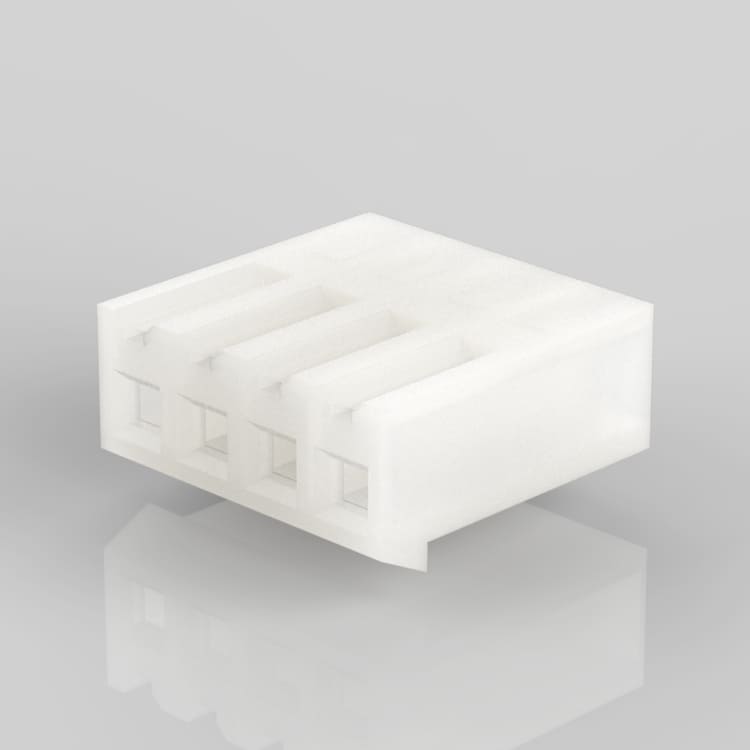

• CW-H396-XX

    CW-H396-XX

    SPECIFICATIONS

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Insulation resistance: 1000MΩMin
    • Dielectric Withstanding Voltage: 1500V AC/minute
    • Contact resistance: 10mΩMax
    • Material: Nylon-66,UL94V-2

    PDF

CW-H396-XX

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.

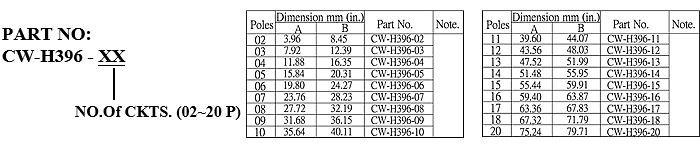

Part No. CW-H396-
NO.Of CKTS
See Catalog
