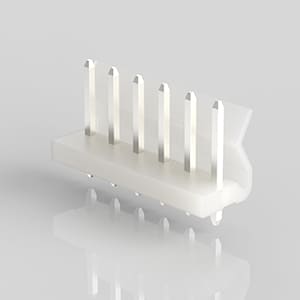

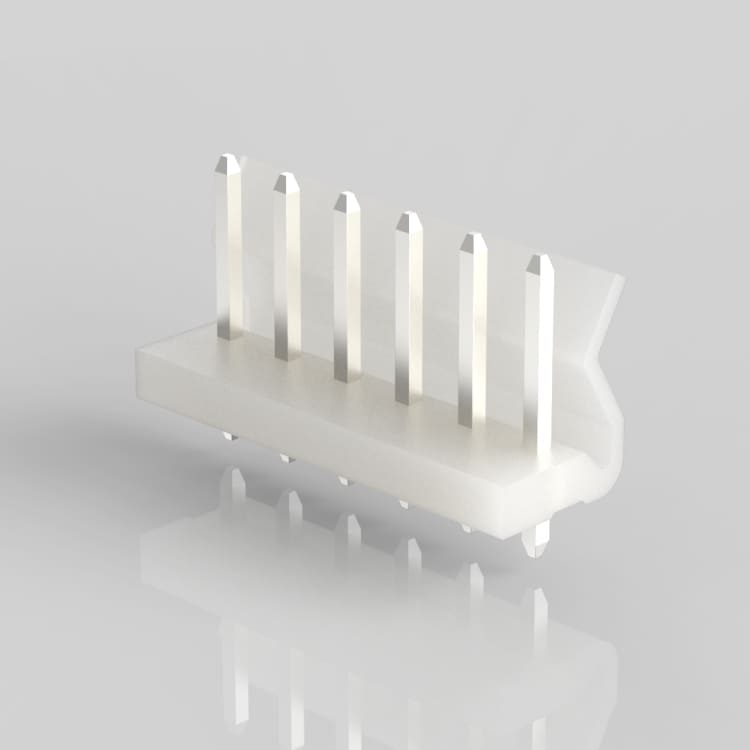

CW-W508-XX
SPECIFICATIONS
Electrical
- Voltage rating: 250V(AC)
- Current rating: 5A
- Contact resistance: 20mΩ max.
- Withstanding voltage: 1000V AC/ 1min.
- Insulation resistance: 1000MΩ/min.
Material
- Insulator: Nylon 66, UL94V-2
- Color: Natural
- Contact: Brass 1.14mm(0.45")square wire pins
- Plating: Tin plated
- Temperature range: -25°C~+85°C
