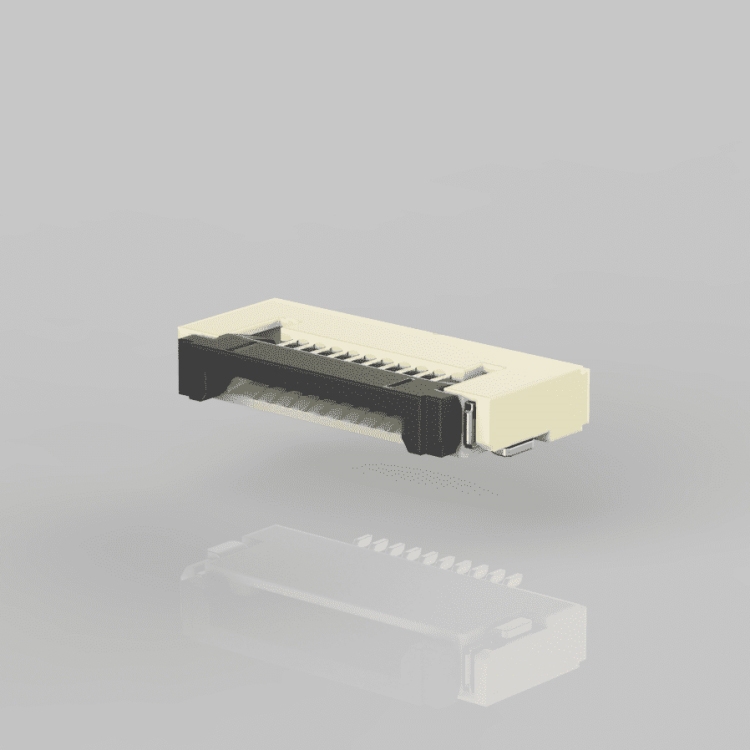

FPC315F0XX-CXR

SPECIFICATIONS
Material:

• HOUSING: LCP UL 94-V0,COLOR:NATURAL.
• COVER: LCP UL 94-V0,COLOR:BLACK.
• CONTACT: PHOSPHOR BRONZE.
• LEG: BRASS.


Platingl:

• CONTACT: GOLD OR TIN PLATED ON NICKEL OVERALL.
• LEG: TIN PLATED ON NICKEL OVERALL.


Rating:

• CURRENT RATING: 0.5A AC/DC
• VOLTAGE RATING: 25V AC/DC
• TEMPERATURE RANGE: -25 °C~+85°C
