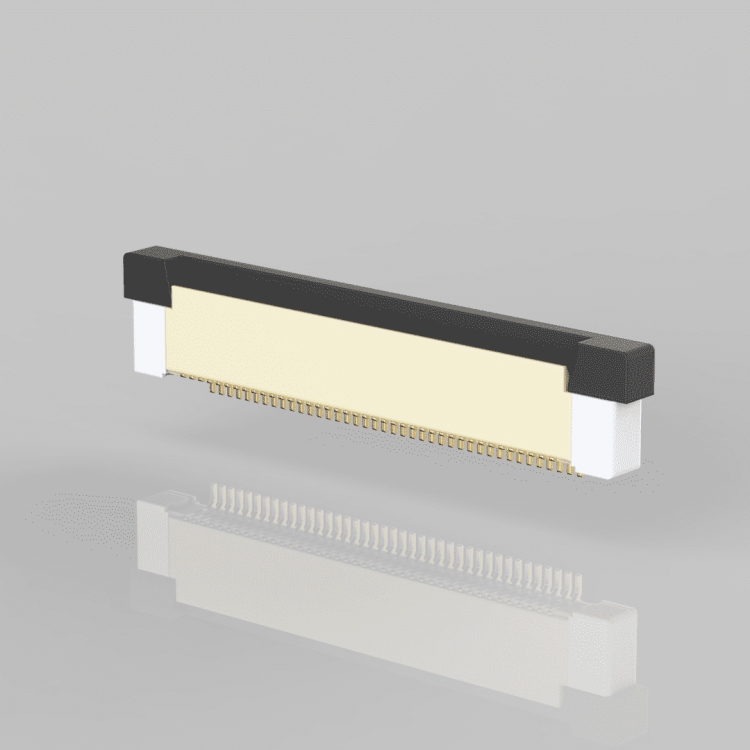

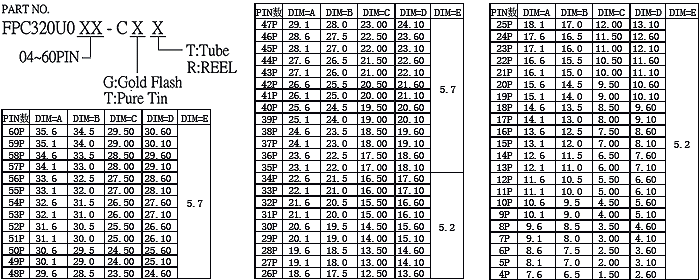

FPC320U0XX-CXX-CF1337
SPECIFICATIONS
Electrical Characteristics:- Current rating: 0.5A AC/DC
- Voltage rating: 50V AC/DC
- Temperature range: -25℃ ～ +85℃
- Withstand Voltage: 500V AC/Minute
- Contact Resistance: ≦30mΩ
- Insulation resistance: ≧500MΩ
- Relative Humidity: 95% Max.
Material Description:
- Contact: Phosphor Bronze, Tin or Gold Plated
- Solder Tab: Brass, Tin Plated
- Housing: LCP UL94V-0
- Slider: LCP UL94V-0
