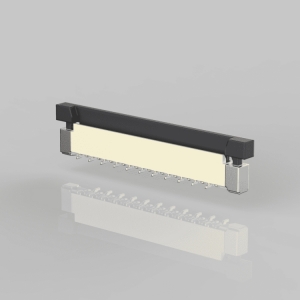

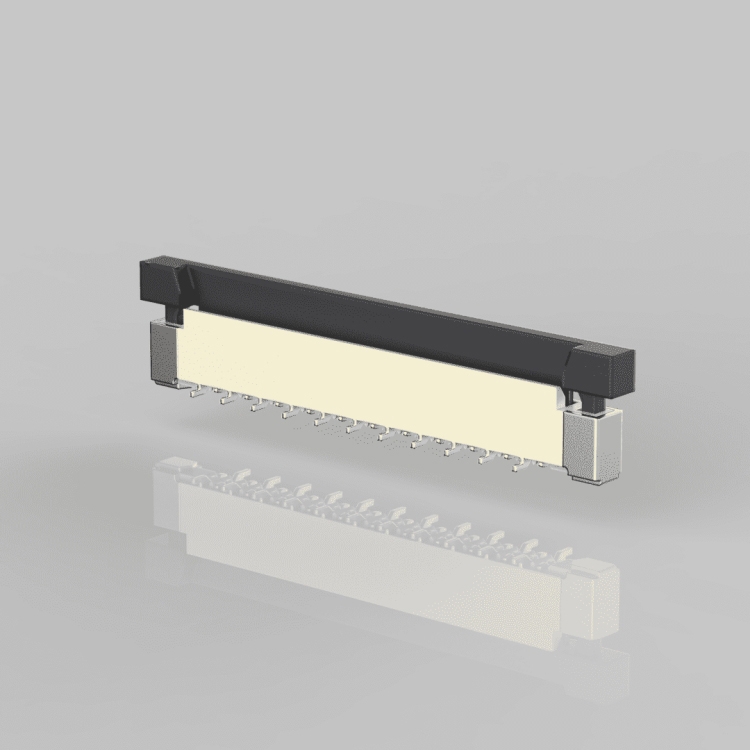

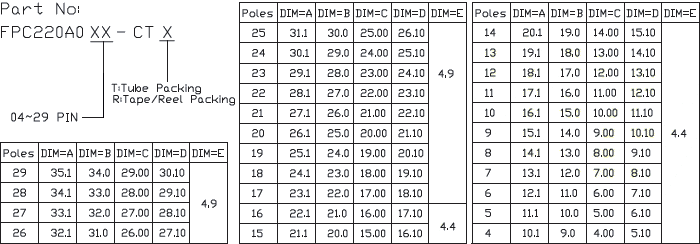

FPC220A0XX-CTT-CF1337
SPECIFICATIONS
Electrical Characteristics:- Current rating: 0.4A AC/DC
- Voltage rating: 50V AC/DC
- Temperature range: -25℃ ～ +85℃
- Withstand Voltage: 200V AC/Minute
- Contact Resistance: 20mΩ Max.
- Insulation resistance: 500MΩ Min.
- Relative Humidity: 93% +40℃.
Material Description:
- Contact: Phosphor Bronze /Tin-Plated
- Solder Tab: Brass /Tin-Plated
- Housing: LCP UL94V-0,Color:Natural.
- Slider: LCP UL94V-0,Color:Black.
