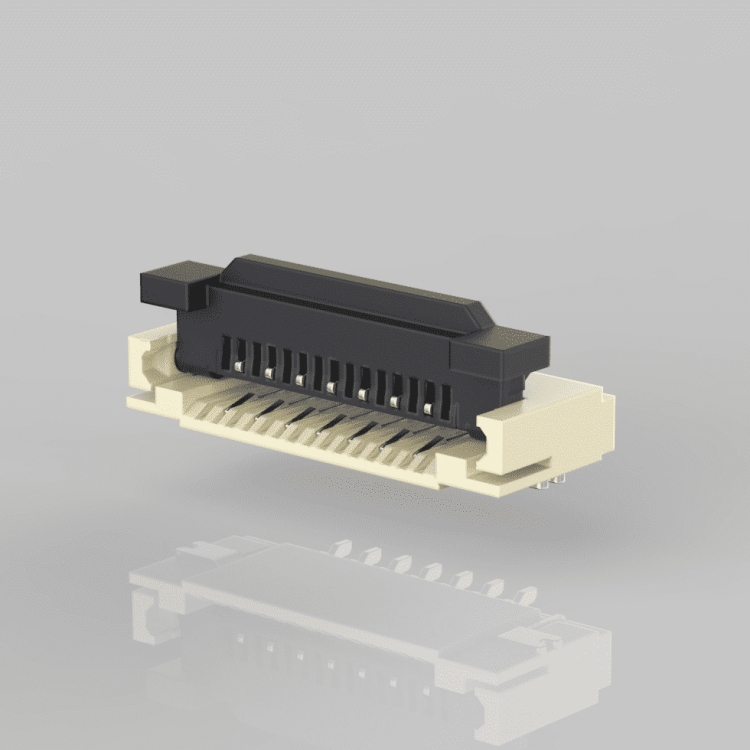

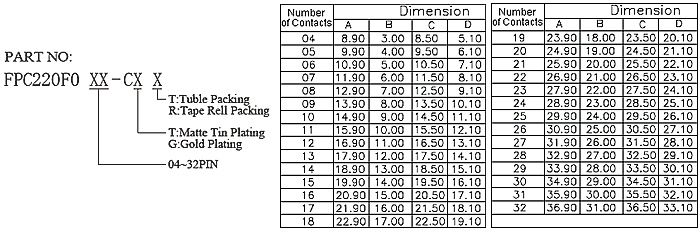

FPC220F0XX-CXX
SPECIFICATIONS
Material:- Housing: LCP UL94-V0 Color:Natural.
- Actuator: LCP UL94-V0 Color:Black.
- Contact: Phosphor Bronze.
- LEG: Brass.
Platingl:
- Contact: Matte Tin Or Gold Plating Nickel Overall.
- LEG: Matte Tin Plating Over Nickel.
Rating:
- Operating Voltage: 50V AC/DC.
- Current Rating: 0.4A AC/DC.
- 3.3:Operating Temperature: -25°C~+85°C.
