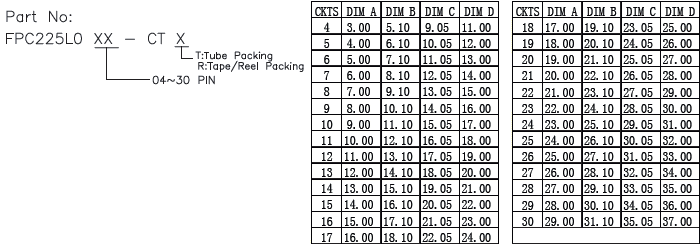

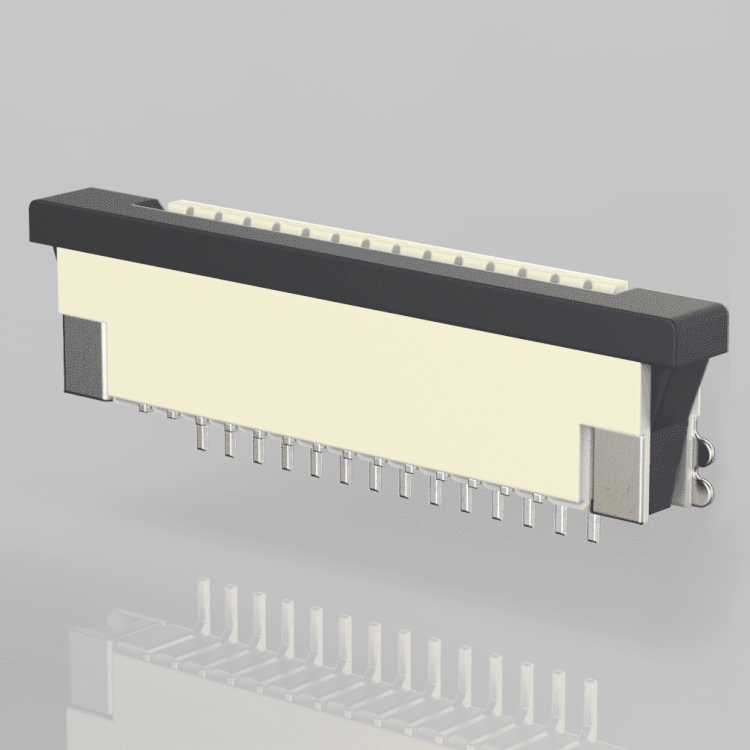

FPC225L0XX-CTX-CF1337

SPECIFICATIONS
Material:

• Housing: LCP UL94V-0; Color: Natural.
• Latch: LCP UL94V-0; Color: Black.
• Terminal: Phosphor Bronze / Tin-Plated
• Fitting Nail: Phosphor Bronze / Tin-Plated


Rating:

• Operating Voltage(Max): 50V AC/DC.
• Current Rating(Max): 0.5A AC/DC.
• Operating Temperature: -25℃~+85℃.(Including terminal temperature rise)
