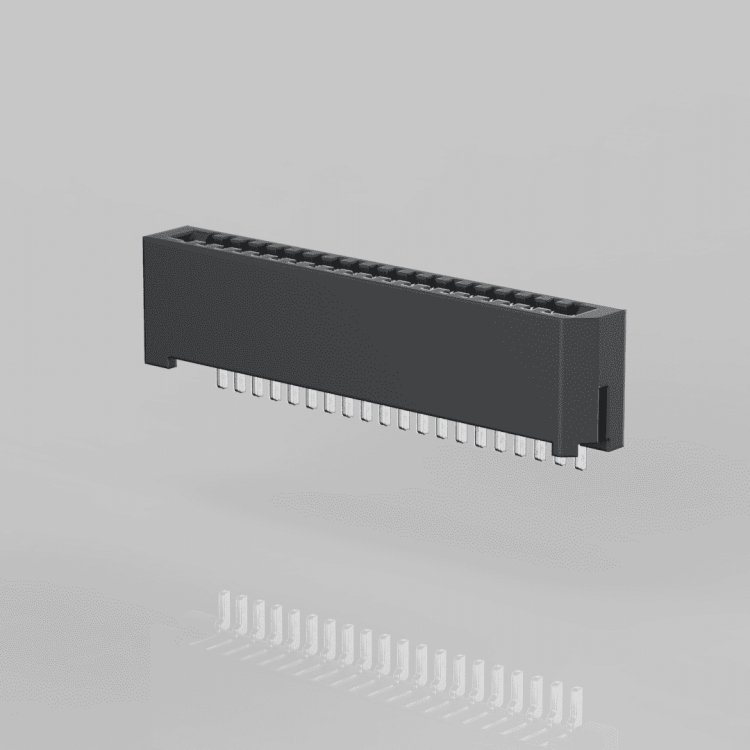

FPC228N3XX-N1TX
SPECIFICATIONS
- Poles: 4~30
- Voltage rating: AC, DC, 200V(50HZ)/ AC, DC, 50V(200HZ)
- Current rating: 0.4A, AC/DC
- Withstand voltage: 200V AC/minutes
- Working Temperature: -25°C~ +85°C
- Insulation resistance: >500MΩ
- Contact resistance: <0.02Ω
- Terminal material: Phosphor Bronze/Tin-Plated
- Housing material: PA9T UL94V-0, Color: Black
