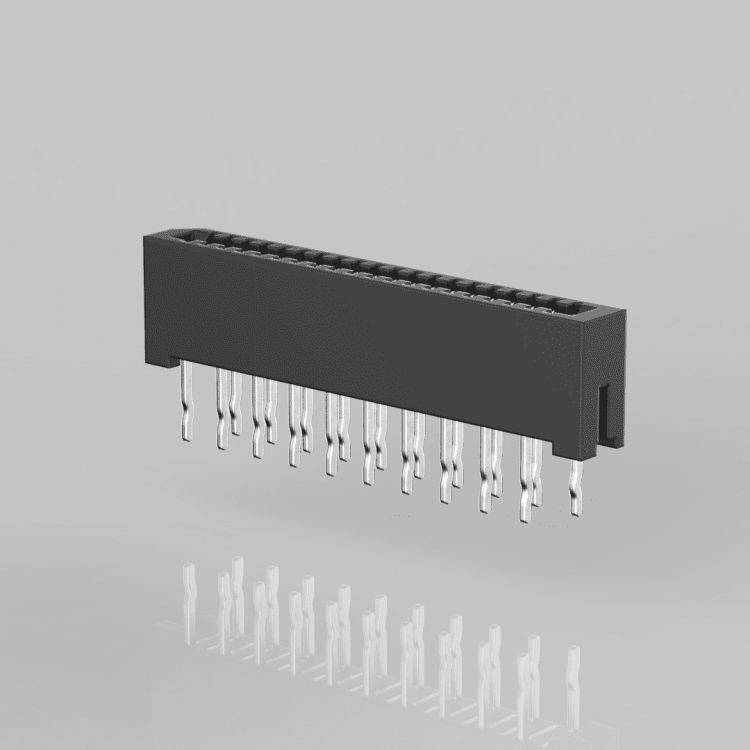

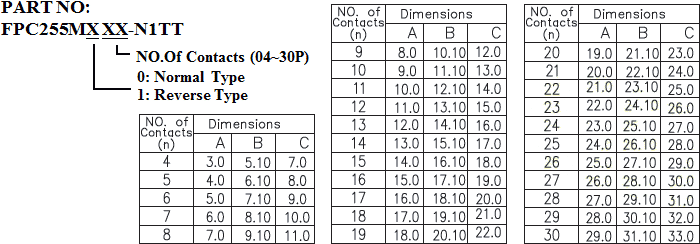

FPC255MXXX-N1TT
SPECIFICATIONS
- Poles: 4~30
- Voltage rating: AC, DC, 200V(50HZ)/ AC, DC, 50V(200HZ)
- Current rating: 0.4A, AC/DC
- Withstand voltage: 200V AC/minutes
- Working Temperature: -25℃~ +85℃
- Insulation resistance: >500MΩ
- Contact resistance: <0.02Ω
- Terminal material: Phosphor Bronze/Tin-Plated
- Housing material: PA9T UL94V-0,Color: Black
- Packing: Tube
