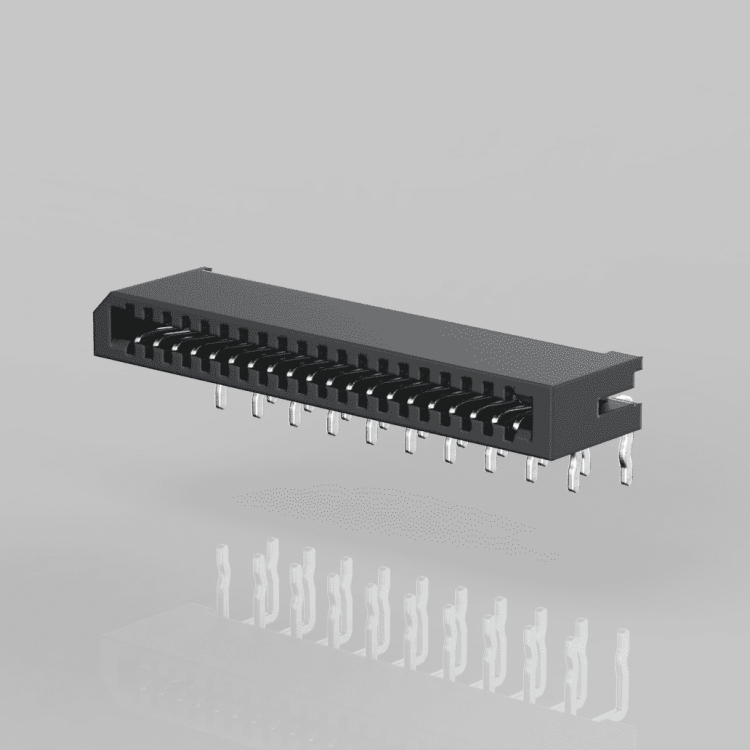

FPC228N1XX-CTT-CF1337
SPECIFICATIONS
- Poles : 4~30
- Voltage rating : AC, DC, 200V(50HZ)/ AC, DC, 50V(200HZ)
- Current rating : 0.4A, AC/DC
- Withstand voltage : 200V AC/minutes
- Working Temperature : -25°C~ +85°C
- Insulation resistance : >500MΩ
- Contact resistance : <0.02Ω
- Terminal material : Phosphor Bronze/Tin-Plated
- Housing material : Tube
