• 1.00mm(0.0394")Series

    1.00mm(0.0394")Series

    SPECIFICATIONS

    • Current rang : 1A AC, DC
    • Voltage rating : 50V AC, DC
    • Temperature range : -25°C~+85°C
    • Contact resistance : 20mΩMax
    • Insulation resistance : 100MΩMin
    • Withstanding voltage : 500V AC/minute
    • Wire Range: AWG #28 to #32

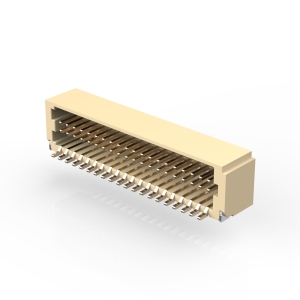

  • CCSH-W10-XXRC

    SPECIFICATIONS

    • Current rang: 1A AC, DC
    • Voltage rating: 50V AC, DC
    • Temperature range:-25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 500V AC/minute
    • Pin Material: Phosphor Bronze
    • Finished: Tin-plated
    • Housing Material: Nylon-6T,UL94V-0
    • Color: Natural

    Inquiry Info. PDF

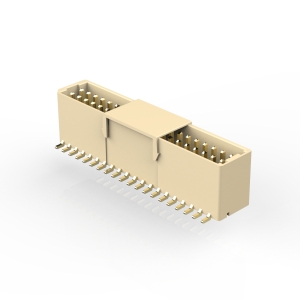

  • CCSH-W10R-XXTR

    SPECIFICATIONS

    • Current rang: 1A AC, DC
    • Voltage rating: 50V AC, DC
    • Temperature range:-25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 500V AC/minute
    • Pin Material: Phosphor Bronze
    • Finished: Tin-plated
    • Housing Material: Nylon-6T,UL94V-0
    • Color: Natural

    Inquiry Info. PDF

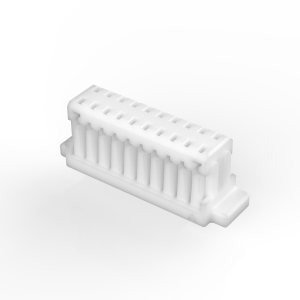

  • CSH-H10-XX

    SPECIFICATIONS

    Electrical

    • Current rang: 1A AC, DC
    • Voltage rating: 50V AC/ max.
    • Temperature range:-25°C~+85°C
    • Insulation resistance: 100MΩMin
    • Dielectric Withstanding Voltage: 500V AC/ min.
    • Contact Resistance: 20mΩ/ max.


    Material

    • Material: PBT, UL94V-0

    Inquiry Info. PDF

  • CSH-T10

    SPECIFICATIONS

    Electrical

    • Current rang: 1A AC, DC
    • Voltage rating: 50V AC/ max.
    • Temperature range:-25°C~+85°C
    • Insulation resistance: 100MΩMin
    • Dielectric Withstanding Voltage: 500V AC/ min.
    • Contact Resistance: 20MΩ/ max.


    Material

    • Terminal maetrial: Phosphor Bronze/ Tin-plated
    • Wire Range: 28 to 32AWG

    Inquiry Info. PDF

  • Mating Wiring Harness

    Inquiry Info.
