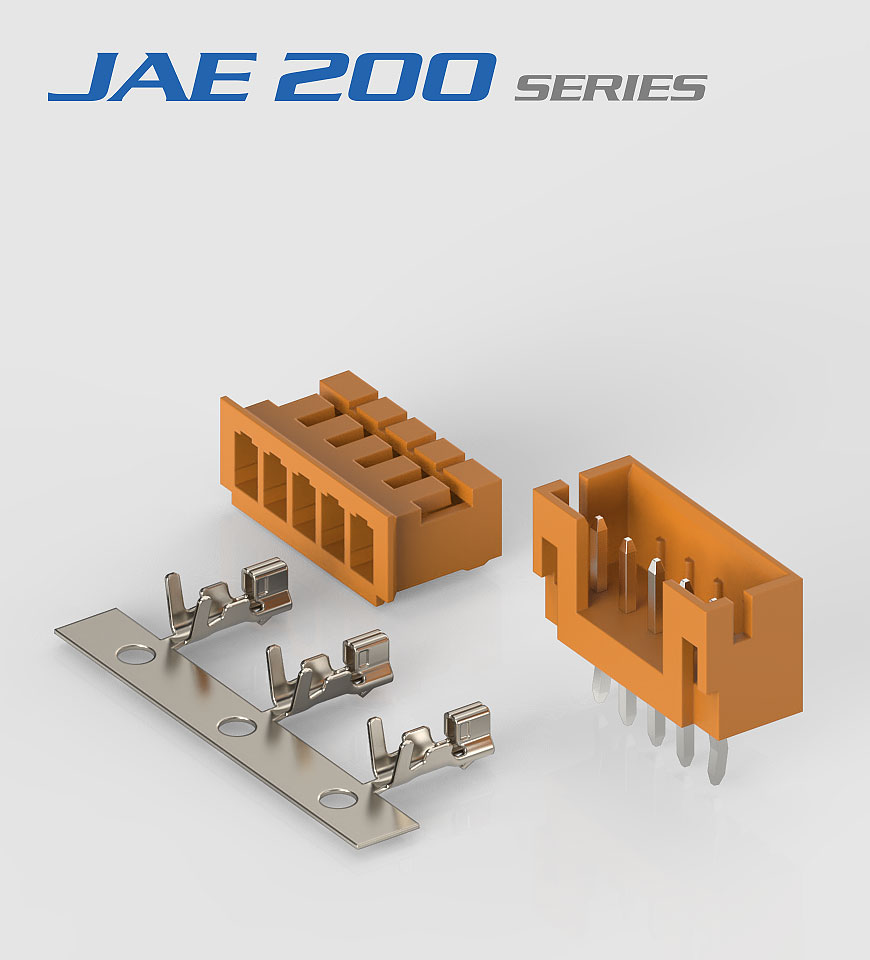

• JAE200 Series

    JAE200 Series

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 300V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Wire Range: AWG #24 to #28

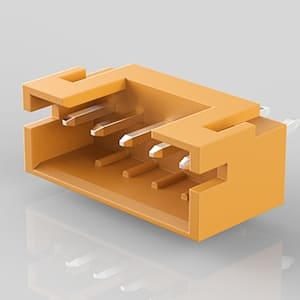

  • 2.0mm Pitch Single Row Wafer, DIP 180°

    CAE-W20-XX

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 300V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-0
    • Color: reddish orange

    Inquiry Info. PDF

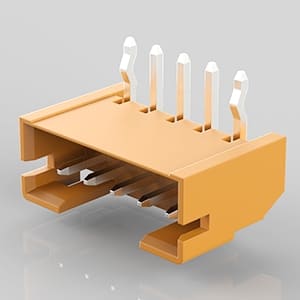

  • 2.0mm Pitch Single Row Wafer ,DIP 90°

    CAE-W20R-XX

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 300V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-0
    • Color: reddish orange

    Inquiry Info. PDF

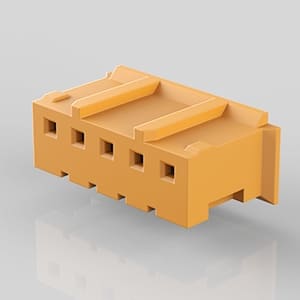

  • 2.0mm Pitch Single Row Housing

    CAE-H20-XX

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 300V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Material: Nylon 66,UL94V-0,Color:153C~154C

    Inquiry Info. PDF

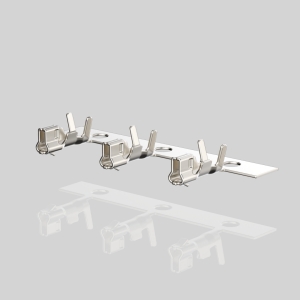

  • 2.00mm(0.079")Pitch Wafer Series

    CAE-T20

    SPECIFICATIONS

    • Current rating: 2A AC, DC
    • Voltage rating: 300V AC, DC
    • Withstanding voltage: 1000V AC/minute

    Inquiry Info. PDF

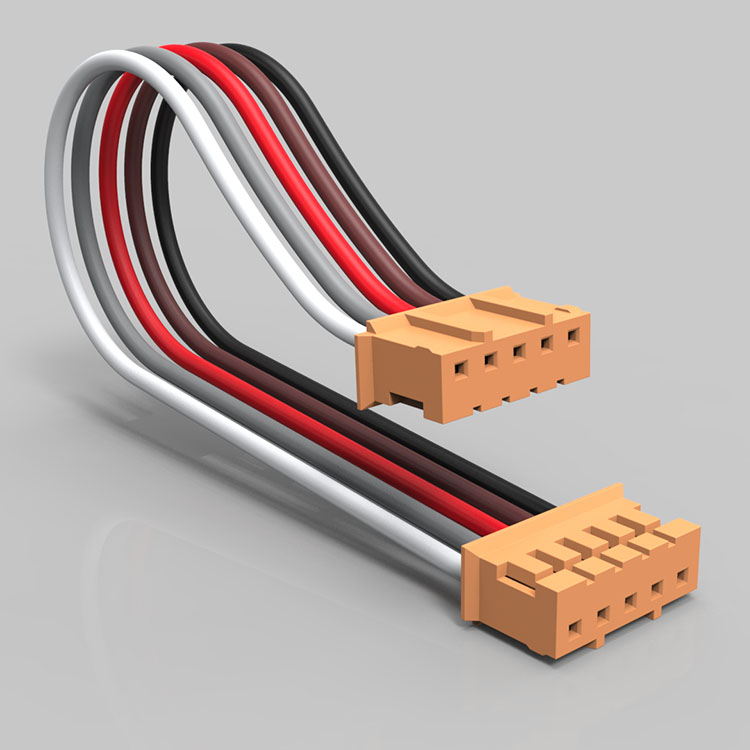

  • Mating Wiring Harness

    Inquiry Info.
