Wire to Board Connector

2.00mm(0.0787")Series

CMI 200 Series
SPECIFICATIONS
- Current rating: 2A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 10mΩ/Max.
- Insulation resistance: 1000MΩ/Min.
- Withstanding voltage: 800V AC/min.
- Wire Range: AWG #26 to #30

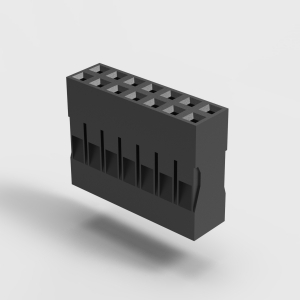

CMI-H200-2xXX

Inquiry Info. PDF

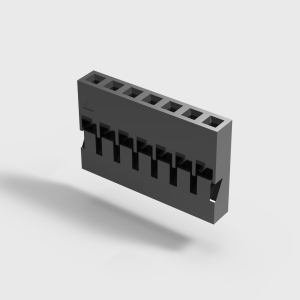

CMI-H200-XX

Inquiry Info. PDF

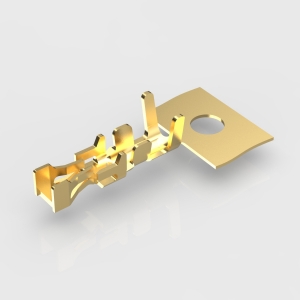

CMI-T2000-_

Inquiry Info. PDF

共計 3 項
