Wire to Board Connector

2.50mm(0.0984")Series

CYH 250 SERIES
SPECIFICATIONS
- Current rating: 3A AC, DC
- Voltage rating: 150V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 30mΩ/Max.
- Insulation resistance: 1000MΩ/Min.
- Withstanding voltage: 1000V AC/min.
- Wire Range: AWG #22 to #26

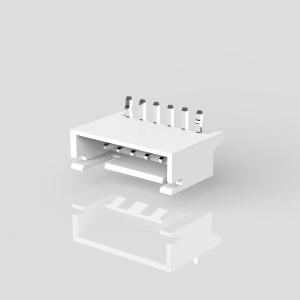

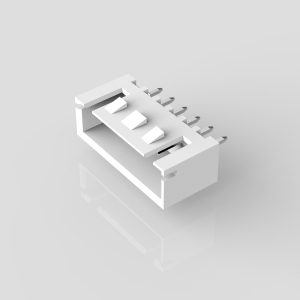

CYH-H250-XX

Inquiry Info. PDF

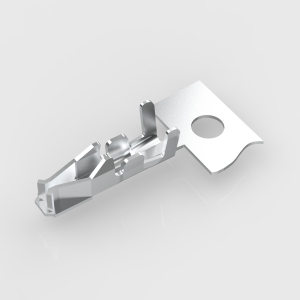

CYH-T250

Inquiry Info. PDF
CYH-W250R-XX

Inquiry Info. PDF

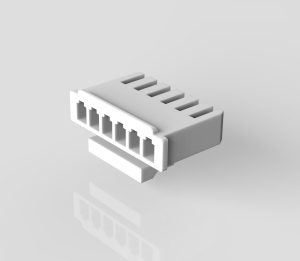

CYH-W250-XX

Inquiry Info. PDF

共計 4 項
